951

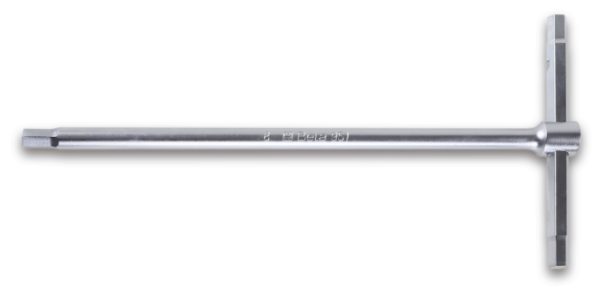

T-handle wrenches with three hexagon male ends
The Beta 951 T-handle wrench has been designed on high-resistance screws, it is the name for quick handling, accurate fit and flexible use. Ongoing production improvements have translated, for example, into sandblasted finishes and sharp-edged hexagon ends which allow a better fit onto any screws, including damaged ones. Laser marking results in a sturdier rod.
Features:
• Designed to develop high torque values
• Calibrated hexagon ends for perfect screw fit

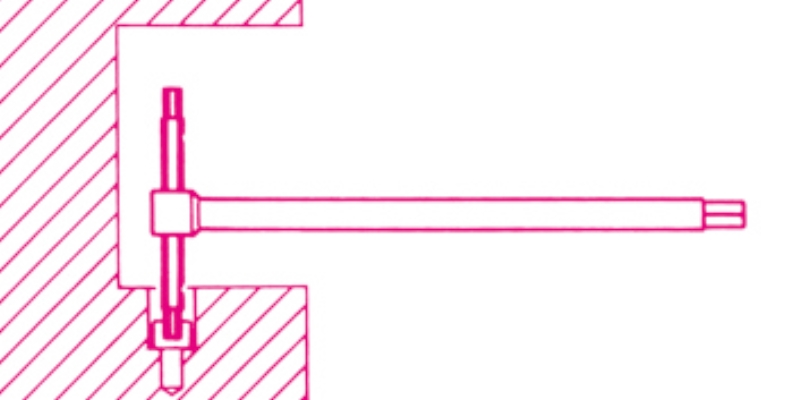

• Hexagon bar can be stopped in required position throughout length; a safety catch prevents bar from coming out.

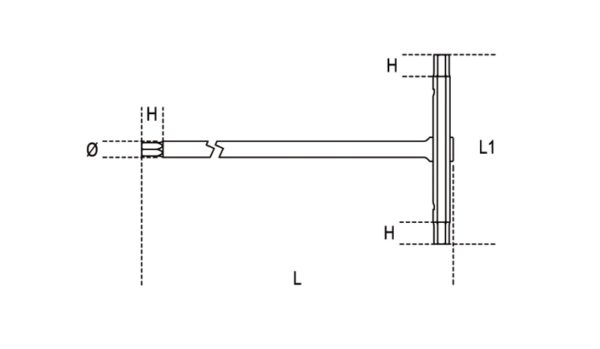

Images with dimensions
Product Name
Art.
mm
L
mm
L1
mm
Ø
mm
H
mm
009510521
951 2
2
125
63
4,0
5,5
009510525
951 2,5
2,5
150
63
4,0
6
009510530
951 3
3
150
63
4,0
6,5
009510535
951 3,5
3,5
175
76
5,5
7,5
009510540
951 4
4
175
76
5,5
8
009510545
951 4,5
4,5
195
87
6,5
8,5
009510550
951 5
5
195
87
6,5
9
009510560
951 6
6
215
99
8,0
10
009510570
951 7
7
230
109
9,0
11
009510580
951 8
8
250
122
10,0
12
009510590
951 9
9
265
132
11,0
13
009510610
951 10
10
280
142
12,0
14
009510620
951 12
12
305
160
15,0
15
009510640
951 14
14
330
178
17,0
17
009510750
951AS 3/32
125
63
4,0
5,5
009510751
951AS 7/64
150
63
4,0
6
009510752
951AS 1/8
150
63
4,0
6,5
009510753
951AS 9/64
175
76
5,5
7,5
009510754
951AS 5/32
175
76
5,5
8
009510755
951AS 3/16
195
86
6,5
9
009510757
951AS 7/32
215
99
8,0
10
009510758
951AS 1/4
230
109
9,0
11
009510759
951AS 5/16
250
122
10,0
12
009510760
951AS 3/8
280
142
12,0
14
