933

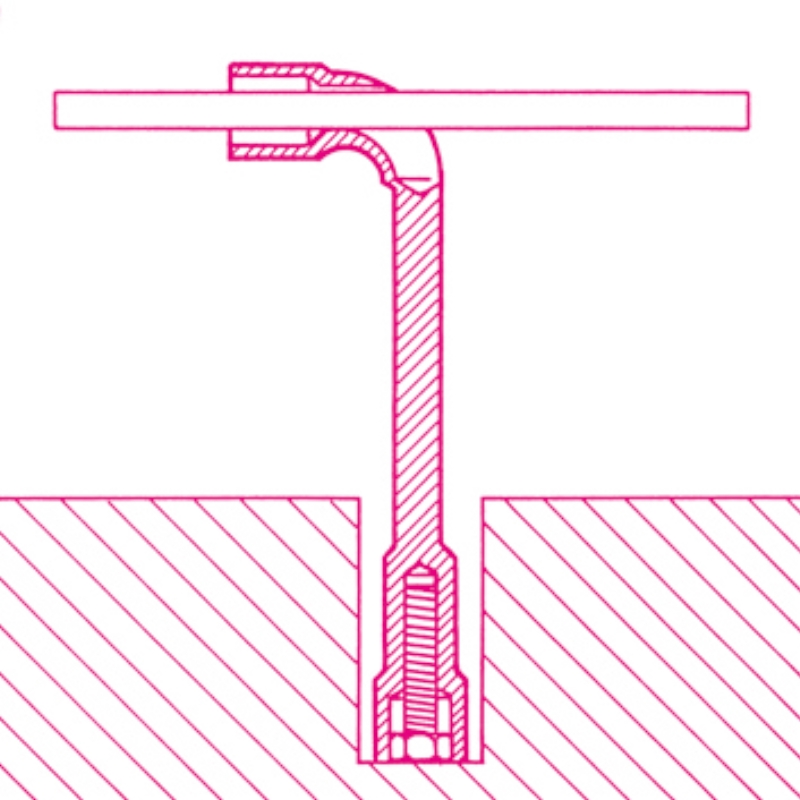

Double ended offset hexagon socket wrenches, bright chrome-plated
NF E 74.303
Images with dimensions
Product Name
Art.
mm
Ø
mm
L
mm
Ø1
mm
A
mm
A1
mm
L1
mm
009330006
933 6X6
6x6
11,5
110
5,0
8,0
15,0
15,0
009330007
933 7X7
mm">7x7
12,5
116
6,0
9,0
18,0
15,0
009330008
933 8X8
mm">8x8
13,0
120
6,0
11,0
20,0
21,0
009330009
933 9X9
mm">9x9
14,0
125
7,0
11,0
20,0
21,0
009330010
933 10X10
mm">10x10
16,5
133
8,0
13,0
22,0
25,0
009330011
933 11X11
mm">11x11
17,5
143
8,5
14,0
23,0
25,0
009330012
933 12X12
mm">12x12
19,0
148
8,5
14,0
25,0
25,0
009330013
933 13X13
mm">13x13
19,5
154
9,5
16,0
28,0
34,0
009330014
933 14X14
mm">14x14
21,5
167
10,0
17,0
28,0
34,0
009330015
933 15X15
mm">15x15
22,5
182
10,0
17,0
29,0
40,0
009330016
933 16X16
mm">16x16
24,5
193
11,0
20,0
33,0
40,0
009330017
933 17X17
mm">17x17
26,0
198
12,0
20,0
34,0
44,0
009330018
933 18X18
mm">18x18
26,5
215
13,0
20,0
34,0
44,0
009330019
933 19X19
mm">19x19
29,0
220
14,0
22,0
35,0
48,0
009330020
933 20X20
mm">20x20
30,5
222
14,0
22,0
37,0
48,0
009330021
933 21X21
mm">21x21
30,5
236
16,0
25,0
39,0
48,0
009330022
933 22X22
mm">22x22
32,5
250
16,0
25,0
41,0
52,0
009330023
933 23X23
mm">23x23
33,5
256
17,0
26,0
44,0
52,0
009330024
933 24X24
mm">24x24
35,0
272
19,0
27,0
46,0
55,0
009330025
933 25X25
mm">25x25
36,5
282
19,0
27,0
47,0
55,0
009330026
933 26X26
mm">26x26
37,5
296
20,0
28,0
47,0
61,0
009330027
933 27X27
mm">27x27
39,0
296
21,0
28,0
50,0
61,0
009330028
933 28X28
mm">28x28
39,0
314
22,0
28,0
51,0
61,0
009330030
933 30X30
mm">30x30
42,5
348
23,0
31,0
51,0
70,0
009330032
933 32X32
mm">32x32
45,5
364
24,0
32,0
51,0
70,0
