8001Z

Turnbuckle bodies, galvanized

TECHNICAL DATA
• safety factor: 4
• traceability code
LABORATORY TESTS
• chemical analysis
• tensile test
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204
type 2.2
• CE Declaration of Conformity

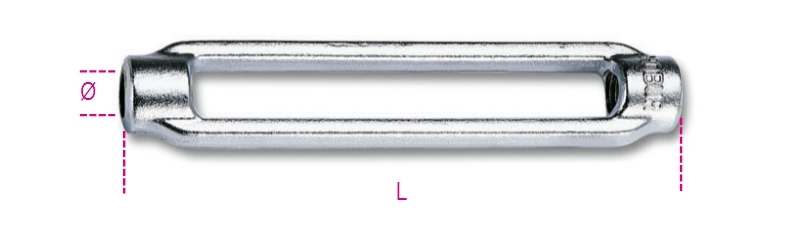

Images with dimensions

Product Name
Art.
Ø mm
≈ ”
WFL kg
L mm
080010105
8001Z M5
M5
3/16
115
80
080010106
8001Z M6
M6
1/4
160
80
080010108
8001Z M8
M8
5/16
300
105
080010110
8001Z M10
M10
3/8
470
125
080010111
8001Z M11
M11
7/16
580
135
080010112
8001Z M12
M12
1/2
690
140
080010114
8001Z M14
M14
9/16
940
170
080010116
8001Z M16
M16
5/8
1290
190
080010118
8001Z M18
M18
11/16
1660
205
080010120
8001Z M20
M20
3/4
2130
220
080010122
8001Z M22
M22
7/8
2630
240
080010124
8001Z M24
M24
1"
3060
260
080010127
8001Z M27
M27
1"1/8
4000
270
080010130
8001Z M30
M30
1"3/16
4860
280
080010133
8001Z M33
M33
1"1/4
6040
290
080010198
8001Z M36
M36
1"3/8
6500
300
080010199
8001Z M39
M39
1"1/2
7900
300
080019108
8001Z-K M8
M8
080019110
8001Z-K M10
M10
080019111
8001Z-K M11
M11
080019112
8001Z-K M12
M12
080019114
8001Z-K M14
M14
080019116
8001Z-K M16
M16
080019118
8001Z-K M18
M18
080019120
8001Z-K M20
M20
080019122
8001Z-K M22
M22
080019124
8001Z-K M24
M24
080019305
8001Z-2K M5
M5
080019306
8001Z-2K M6
M6
