TECHNICAL DATA
• safety factor: 5
• heat treatment, body: normalizing
• heat treatment, jaws: hardening and tempering
LABORATORY TESTS
• chemical analysis
• tensile test
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204 type 2.2
New
8109

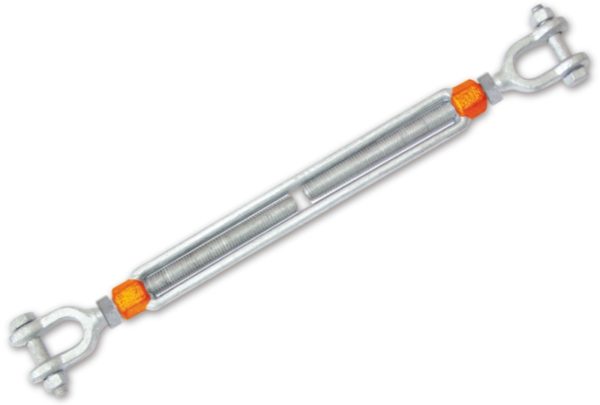

Jaw and jaw turnbuckles high tensile steel, hot dip galvanized
Images with dimensions
Product Name
Art.
081090017
8109 5/8X12
081090010
8109 3/8X6
3/8x6
M10x150
540
258
081090011
8109 1/2x6
081090012
8109 1/2X9
1/2x9
M12x230
1000
368
081090013
8109 1/2x12
081090015
8109 5/8x6
081090016
8109 5/8X9
5/8x9
M16x230
1590
401
081090018
8109 3/4x6
081090019
8109 3/4x12
081090020
8109 3/4X9
3/4x9
M20x230
2360
432
081090021
8109 3/4x18
081090022
8109 7/8X12
7/8x12
M22x300
3270
542
081090023
8109 7/8x18
081090024
8109 1X6
1x6
M24x150
4540
425
081090025
8109 1X12
1x12
M24x300
4540
577
081090026
8109 1x18
081090031
8109 1.1/4X12
1.1/4x12
M33x300
6900
644
081090032
8109 1.1/4X18
1.1/4x18
M33x460
6900
081090033
8109 1.1/4X24
1.1/4x24
M33x610
6900
081090034
8109 1.1/2X12
081090036
8109 1.3/4X18
081090038
8109 1.1/2x18
081090039
8109 1.1/2x24
081099010
8109-K 3/8X6
3/8x6
M10x150
540
258
081099012
8109-K 1/2X9
1/2x9
M12x230
1000
368
