TECHNICAL DATA
• safety coefficient: 4
LABORATORY TESTS
• chemical analysis
• tensile test
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204
type 2.2
• CE Declaration of Conformity
8010Z

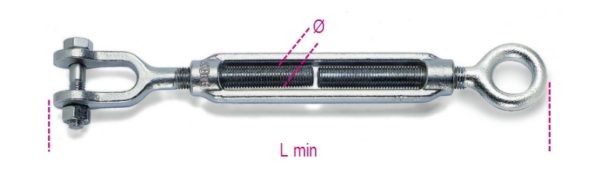

Eye and jaw turnbuckles, galvanized
Images with dimensions
Product Name
Art.
Ø
mm
≈
”
WFL
kg
L min
mm
080100008
8010Z M8
M8
5/16
300
175
080100010
8010Z M10
M10
3/8
470
215
080100012
8010Z M12
M12
1/2
690
250
080100014
8010Z M14
M14
9/16
940
299
080100016
8010Z M16
M16
5/8
1290
331
080100018
8010Z M18
M18
11/16
1660
382
080100020
8010Z M20
M20
3/4
2130
382
080100022
8010Z M22
M22
7/8
2630
433
080100024
8010Z M24
M24
1"
3060
461
080100027
8010Z M27
M27
1"1/8
4000
492
080100030
8010Z M30
M30
1"3/16
4860
529
080109008
8010Z-K M8
M8
080109010
8010Z-K M10
M10
080109012
8010Z-K M12
M12
080109014
8010Z-K M14
M14
