LABORATORY TESTS
• chemical analysis
• tensile test
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204 type 2.2
8209

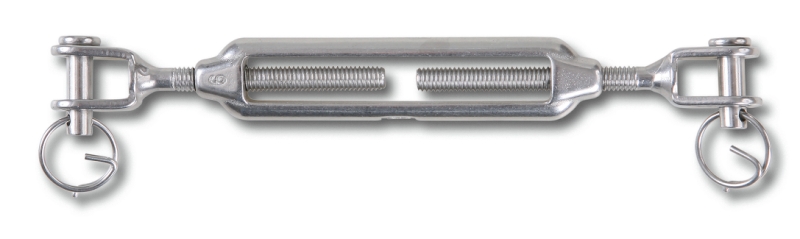

Jaw and jaw turnbuckle AISI 316
Images with dimensions
Product Name
Art.
A
mm
B
mm
ø F
mm
WFL
kg
L min
mm
H
mm
BF
kg
082090205
8209 M5
M5
72
5
115
120
7
720
082090206
8209 M6
M6
92
6
160
145
9
1400
082090208
8209 M8
M8
122
8
300
180
12
2200
082090210
8209 M10
M10
150
10
470
225
15
2920
082090212
8209 M12
M12
201
12
690
295
18
4240
082090214
8209 M14
M14
225
14
940
370
6400
082090216
8209 M16
M16
244
16
1290
412
22
6800
082090220
8209 M20
M20
295
20
2130
525
27
8920
082090224
8209 M24
M24
350
24
3060
12500
