TECHNICAL DATA
• safety factor: 5
• heat treatment: hardening and tempering
• traceability code
LABORATORY TESTS
• chemical analysis, metallographic analysis
• proof load test (WLL x 2.5)
• tensile test
• fatigue test (min. 20,000 cycles)
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204
type 2.2
• Inspection certificate UNI EN10204
type 3.1
• CE Declaration of Conformity
8065SC

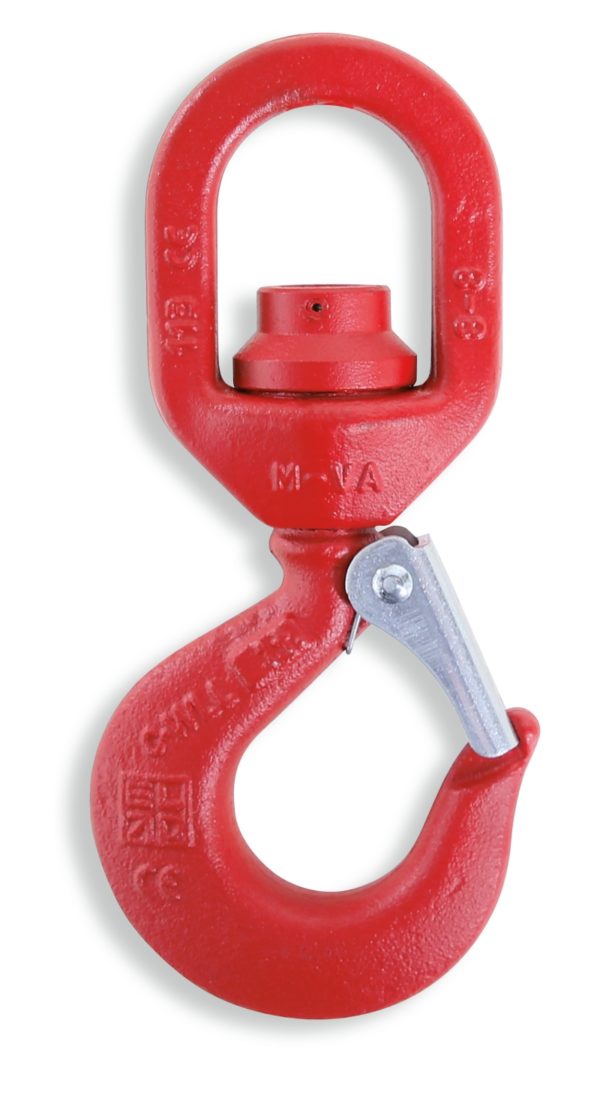

Swivel load lifting hooks carbon steel, painted
EN 1677-5

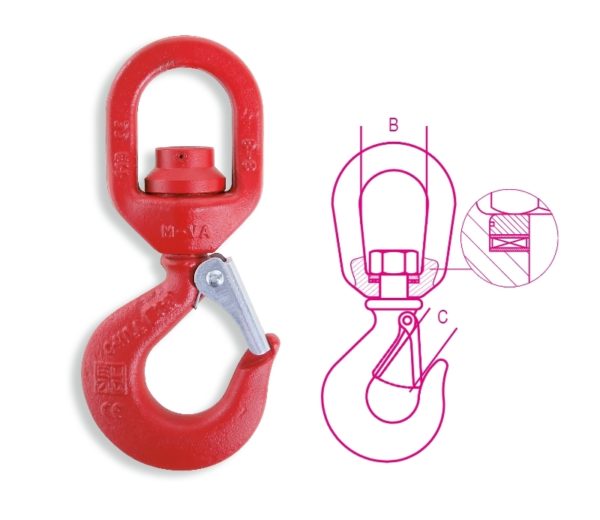

Images with dimensions
Product Name
Art.
WLL
kg
B
mm
C
mm
080650107
8065SC 0,8
800
38
20
080650110
8065SC 1,0
1000
38
22
080650115
8065SC 1,6
1600
47
23
080650120
8065SC 2,0
2000
47
27
080650130
8065SC 3,2
3200
54
35
080650150
8065SC 5,0
5000
72
43
080650175
8065SC 7,5
7500
82
53
