Amperometric clamp with digital multimeter and data connection
Amperometric clamp with digital multimeter and data connection - Image 2
Amperometric clamp with digital multimeter and data connection - Image 3
New

1760PA/AC-DC2000

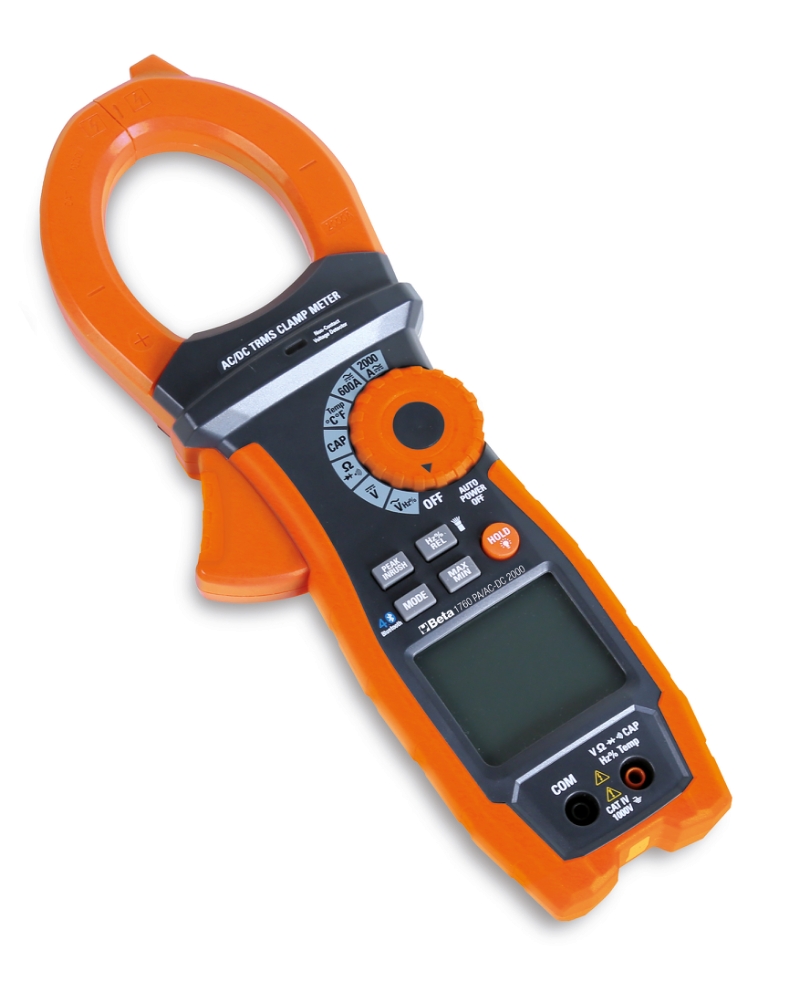

Amperometric clamp with digital multimeter and data connection

​2000A
Bluetooth connection
TRUE RMS function in AC range
380x280x100 mm –  1,78 kg

​Measurable parameters:
• DC voltage: 0.1mV ÷ 1000V
• AC voltage: 0.1mV ÷ 1000V
• AC current: 0.01A ÷ 2000A
• DC current: 0.01A ÷ 2000A
• Resistance: 0.1Ω ÷ 60MΩ
• Capacity: 1nF ÷ 6000 µF
• Frequency: 10kHz ÷ 20kHz
• Temperature: -20 °C ÷ 1000 °C -4 °F ÷ 1832 °F
• Power supply: 3 1.5V batteries, type AA (included)
• Data connection (version 4.0)

Find a Dealer
​A: AC/DC V: AC/DC

Images with dimensions

Product Name
Art.
H mm
L mm
P mm
017600003
1760PA/AC-DC2000
300
110
43
