414

Twist drills with cylindrical shanks, short series, HSS-TiN entirely ground

R ≤ 900 N/mm²
HV 0,05 ~ 2500

DIN 338 ISO 235

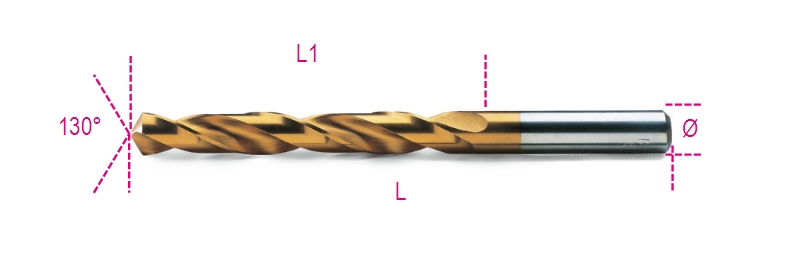

Images with dimensions

Product Name
Art.
Ø mm
L mm
L1 mm
004140040
414 1,00
1,00
34
12
004140042
414 1,25
1,25
38
16
004140046
414 1,50
1,50
40
18
004140048
414 1,75
1,75
46
22
004140052
414 2,00
2,00
49
24
004140054
414 2,25
2,25
53
27
004140058
414 2,50
2,50
57
30
004140060
414 2,75
2,75
61
33
004140064
414 3,00
3,00
61
33
004140066
414 3,25
3,25
65
36
004140070
414 3,50
3,50
70
39
004140072
414 3,75
3,75
70
39
004140076
414 4,00
4,00
75
43
004140078
414 4,25
4,25
75
43
004140082
414 4,50
4,50
80
47
004140084
414 4,75
4,75
80
47
004140088
414 5,00
5,00
86
52
004140090
414 5,25
5,25
86
52
004140094
414 5,50
5,50
93
57
004140096
414 5,75
5,75
93
57
004140100
414 6,00
6,00
93
57
004140102
414 6,25
6,25
101
63
004140106
414 6,50
6,50
101
63
004140108
414 6,75
6,75
109
69
004140112
414 7,00
7,00
109
69
004140114
414 7,25
7,25
109
69
004140118
414 7,50
7,50
109
69
004140120
414 7,75
7,75
117
75
004140124
414 8,00
8,00
117
75
004140125
414 8,25
8,25
117
75
004140130
414 8,50
8,50
117
75
004140132
414 8,75
8,75
125
81
004140136
414 9,00
9,00
125
81
004140138
414 9,25
9,25
125
81
004140142
414 9,50
9,50
125
81
004140144
414 9,75
9,75
133
87
004140148
414 10,00
10,00
133
87
004140150
414 10,50
10,50
133
87
004140152
414 11,00
11,00
142
94
004140154
414 11,50
11,50
142
94
004140156
414 12,00
12,00
151
101
004140158
414 12,50
12,50
151
101
004140160
414 13,00
13,00
151
101
