TECHNICAL DATA
• safety factor: 4
LABORATORY TESTS
• chemical analysis
• tensile test
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204 type 2.2
8004ND

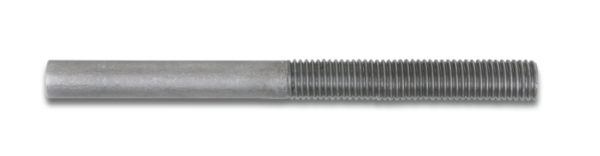

Turnbuckle stubs right-handed thread, self-coloured
Images with dimensions
Product Name
Art.
Ø
mm
≈
”
WFL
kg
E
mm
080040005
8004ND M5
M5
3/16
115
40
080040006
8004ND M6
M6
1/4
160
44
080040008
8004ND M8
M8
5/16
300
53
080040010
8004ND M10
M10
3/8
470
63
080040012
8004ND M12
M12
1/2
690
70
080040014
8004ND M14
M14
9/16
940
85
080040016
8004ND M16
M16
5/8
1290
95
080040018
8004ND M18
M18
11/16
1660
103
080040020
8004ND M20
M20
3/4
2130
110
080040022
8004ND M22
M22
7/8
2630
120
080040024
8004ND M24
M24
1"
3060
130
080040027
8004ND M27
M27
1"1/8
4000
135
080040030
8004ND M30
M30
1"3/16
4860
140
080040033
8004ND M33
M33
1"1/4
6040
150
080040098
8004ND M36
M36
1"3/8
6500
150
080040099
8004ND M39
M39
1"1/2
7900
150
080040105
8004NS M5
M5
3/16
115
40
080040106
8004NS M6
M6
1/4
160
44
080040108
8004NS M8
M8
5/16
300
53
080040110
8004NS M10
M10
3/8
470
63
080040112
8004NS M12
M12
1/2
690
70
080040114
8004NS M14
M14
9/16
940
85
080040116
8004NS M16
M16
5/8
1290
95
080040118
8004NS M18
M18
11/16
1660
103
080040120
8004NS M20
M20
3/4
2130
110
080040122
8004NS M22
M22
7/8
2630
120
080040124
8004NS M24
M24
1"
3060
130
080040127
8004NS M27
M27
1"1/8
4000
135
080040130
8004NS M30
M30
1"3/16
4860
140
080040133
8004NS M33
M33
1"1/4
6040
150
080040198
8004NS M36
M36
1"3/8
6500
150
080040199
8004NS M39
M39
1"1/2
7900
150
