8002ZD

Turnbuckle eyes right thread, galvanized

TECHNICAL DATA
• safety factor: 4
LABORATORY TESTS
• chemical analysis
• tensile test
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204 type 2.2

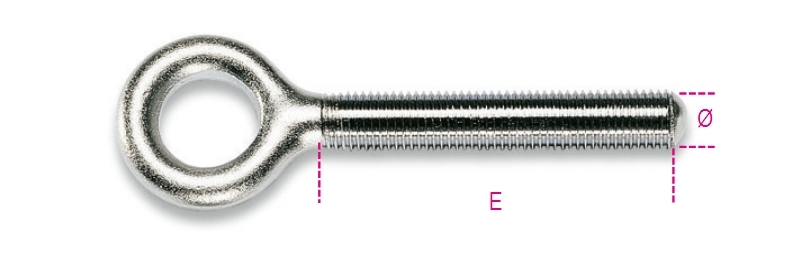

Images with dimensions

Product Name
Art.
Ø mm
≈ ”
E mm
WFL kg
080020105
8002ZD M5
M5
3/16
37
115
080020106
8002ZD M6
M6
1/4
40
160
080020108
8002ZD M8
M8
5/16
52
300
080020110
8002ZD M10
M10
3/8
60
470
080020111
8002ZD M11
M11
7/16
65
580
080020112
8002ZD M12
M12
1/2
72
690
080020114
8002ZD M14
M14
9/16
85
940
080020116
8002ZD M16
M16
5/8
95
1290
080020118
8002ZD M18
M18
11/16
103
1660
080020120
8002ZD M20
M20
3/4
110
2130
080020122
8002ZD M22
M22
7/8
120
2630
080020124
8002ZD M24
M24
1"
130
3060
080020127
8002ZD M27
M27
1"1/8
135
4000
080020130
8002ZD M30
M30
1"3/16
140
4860
080020133
8002ZD M33
M33
1"1/4
148
6040
080020198
8002ZD M36
M36
1"3/8
150
6500
080020199
8002ZD M39
M39
1"1/2
150
7900
080020305
8002ZS M5
M5
3/16
37
115
080020306
8002ZS M6
M6
1/4
40
160
080020308
8002ZS M8
M8
5/16
52
300
080020310
8002ZS M10
M10
3/8
60
470
080020311
8002ZS M11
M11
7/16
65
580
080020312
8002ZS M12
M12
1/2
72
690
080020314
8002ZS M14
M14
9/16
85
940
080020316
8002ZS M16
M16
5/8
95
1290
080020318
8002ZS M18
M18
11/16
103
1660
080020320
8002ZS M20
M20
3/4
110
2130
080020322
8002ZS M22
M22
7/8
120
2630
080020324
8002ZS M24
M24
1"
130
3060
080020327
8002ZS M27
M27
1"1/8
135
4000
080020330
8002ZS M30
M30
1"3/16
140
4860
080020333
8002ZS M33
M33
1"1/4
148
6040
080020398
8002ZS M36
M36
1"3/8
150
6500
080020399
8002ZS M39
M39
1"1/2
150
7900
