TECHNICAL DATA
• safety factor: 5
• turnbuckle body treatment: normalizing
• turnbuckle eye treatment: hardening and tempering
• traceability code
LABORATORY TESTS
• chemical analysis
• tensile test
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204 type 2.2
• Inspection certificate UNI EN10204 type 3.1
• CE Declaration of Conformity

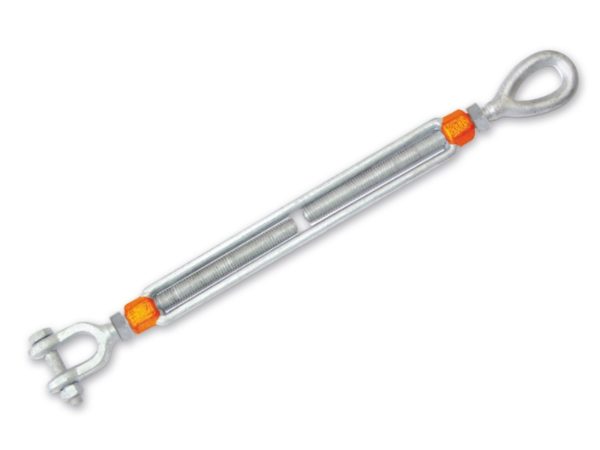

Eye and jaw turnbuckles, high-tensile steel, hot dip galvanized

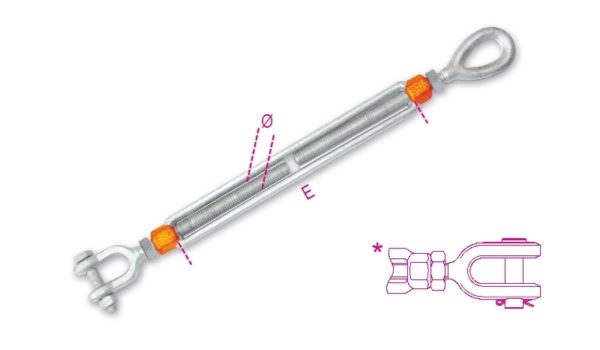

Images with dimensions
Product Name
Art.
ØxE
”
≈
mm
WFL
kg
L min
mm
081100010
8110 1/2x9
1/2x9
M12x230
1000
390
081100016
8110 5/8x12
5/8x12
M16x300
1590
514
081100019
8110 3/4x6
3/4x6
M20x150
2360
391
081100020
8110 3/4x9
3/4x9
M20x230
2360
465
081100021
8110 3/4x12
3/4x12
M20x300
2360
541
081100022
8110 7/8X12
7/8X12
M22x300
3270
570
081100027
8110 1x6
1x6
M24x150
4540
472
081100029
8110 1x12
1x12
M24x300
4540
623
081100034
8110 1.1/4x12
*1.1/4x12
M33x300
6900
676
081100038
8110 1.1/2x12
*1.1/2x12
M39x300
9710
715
081100039
8110 1.1/2x18
*1.1/2x18
M39x460
9710
870
081100044
8110 1.3/4x18
*1.3/4x18
M45x460
12700
938
