TECHNICAL DATA
• safety factor: 4
• heat treatment: hardening and tempering
• traceability code
LABORATORY TESTS
• chemical analysis
• metallographic analysis
• tensile test
• fatigue test (20,000 cycles)
• proof load test (100% of batch)
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204
type 2.2
• Inspection certificate UNI EN10204
type 3.1
• CE Declaration of Conformity
8041
Lifting eyebolts, high-tensile alloy steel

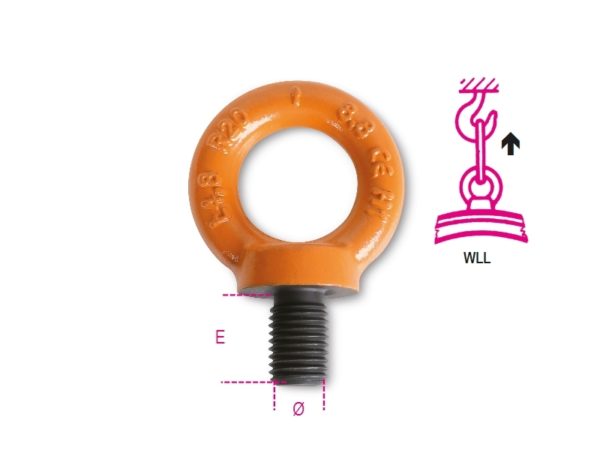

Images with dimensions
Product Name
Art.
Ø
mm
mm
E
mm
WLL
kg
080410208
8041 M8
M8
1,25
13
800
080410210
8041 M10
M10
1,5
17
1000
080410212
8041 M12
M12
1,75
20,5
1600
080410216
8041 M16
M16
2
27
3200
080410220
8041 M20
M20
2,5
30
4800
080410224
8041 M24
M24
3
36
6500
080410230
8041 M30
M30
3,5
45
12000
080419208
8041-K M8
M8
1,25
13
600
080419210
8041-K M10
M10
1,5
17
800
080419212
8041-K M12
M12
1,75
20,5
1300
