TECHNICAL DATA
• safety factor: 6
• heat treatment: normalizing
• traceability code
LABORATORY TESTS
• chemical analysis
• metallographic analysis
• tensile test
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204 type 2.2
• Inspection certificate UNI EN10204 type 3.1
• CE Declaration of Conformity
8042EN

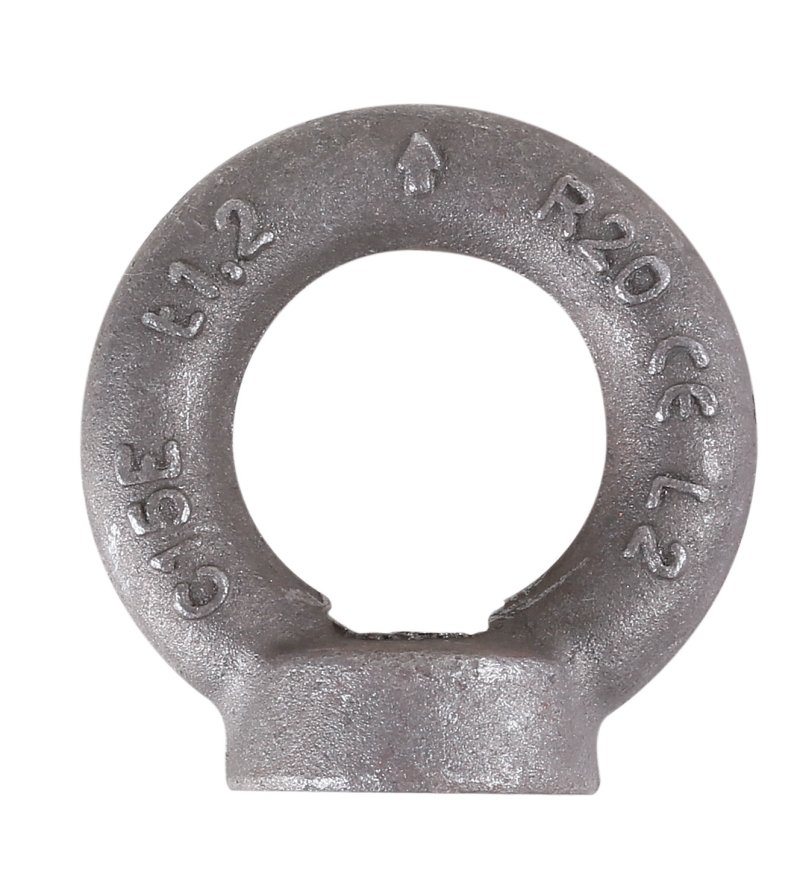

Lifting eye nuts, self-coloured
DIN582:2018-04(**)

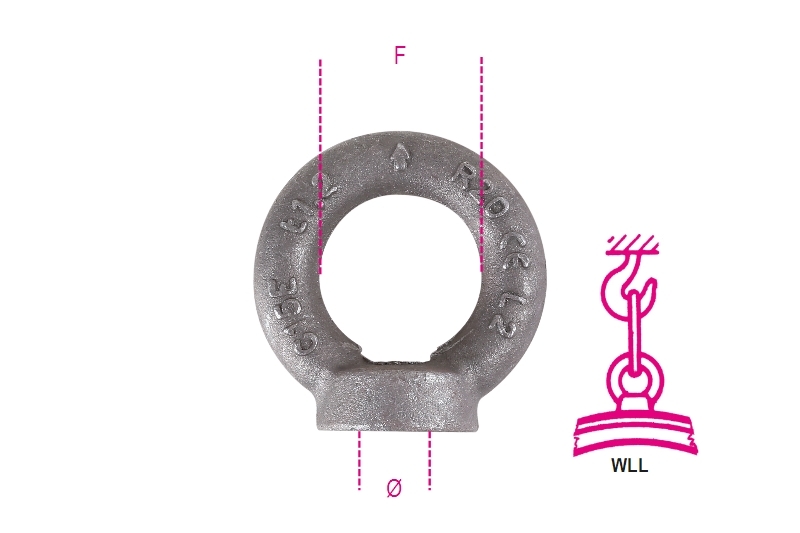

Images with dimensions
Product Name
Art.
Ø
mm
mm
WLL
kg
F
mm
080420306
8042EN M6
M6
1
90
14
080420308
8042EN M8
M8
1,25
140
20
080420310
8042EN M10
M10
1,5
230
25
080420312
8042EN M12
M12
1,75
340
30
080420314
8042EN M14
M14
2
480
30
080420316
8042EN M16
M16
2
700
35
080420318
8042EN M18
M18
2,5
930
35
080420320
8042EN M20
M20
2,5
1200
40
080420322
8042EN M22
M22
2,5
1450
40
080420324
8042EN M24
M24
3
1800
50
080420327
8042EN M27
M27
3
2400
55
080420330
8042EN M30
M30
3,5
3200
60
080420336
8042EN M36
M36
4
4600
70
080420337
8042EN M36F
M36F
3
4600
70
080420342
8042EN M42
M42
4,5
6300
80
080420343
8042EN M42F
M42F
3
6300
80
080420348
8042EN M48
M48
5
8600
90
080420349
8042EN M48F
M48F
3
8600
90
