8064S

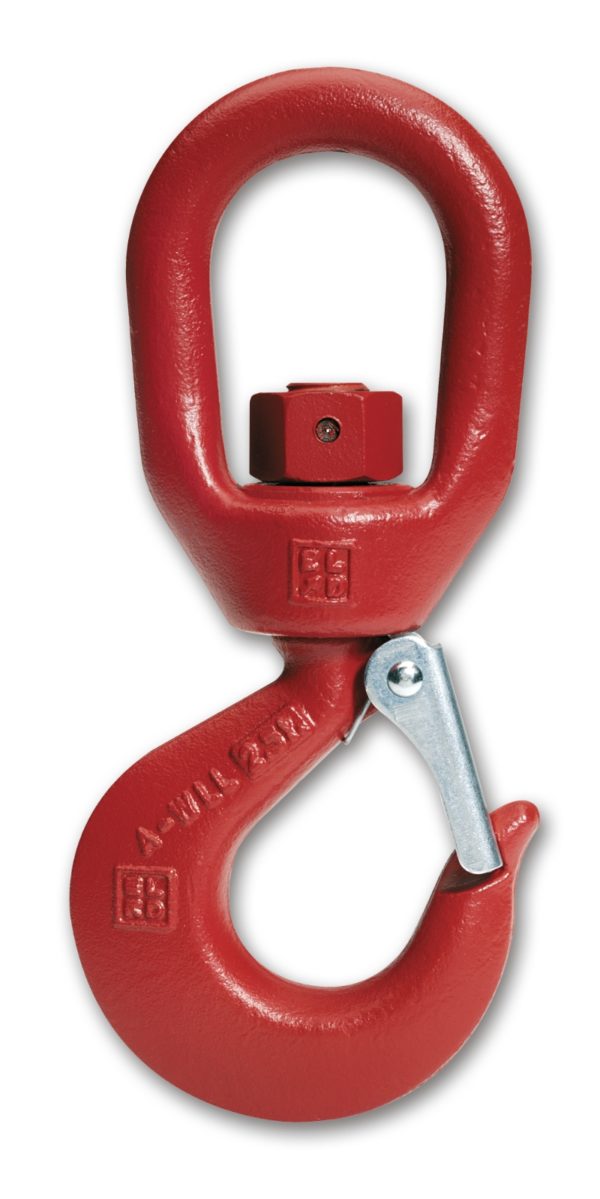

Swivel lifting hooks (not under load) carbon steel, painted

TECHNICAL DATA
• safety factor: 5
• heat treatment: hardening and tempering
• traceability code
LABORATORY TESTS
• chemical analysis, metallographic analysis
• proof load test (WLL x 2.5)
• tensile test
• fatigue test (min. 20,000 cycles)
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204
type 2.2
• Inspection certificate UNI EN10204
type 3.1
• CE Declaration of Conformity

EN 1677-5

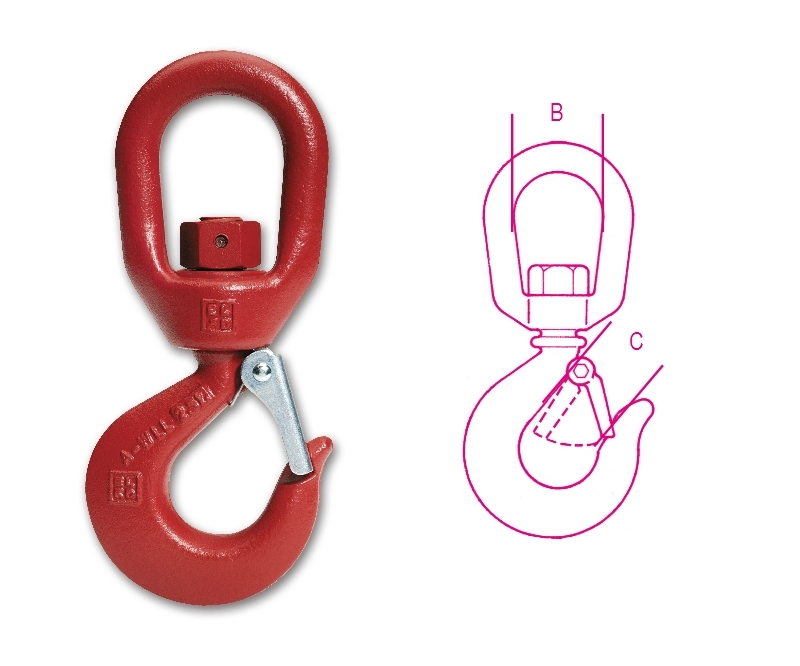

Images with dimensions

Product Name
Art.
WLL kg
B mm
C mm
080640107
8064S 0,8
800
31
20
080640110
8064S 1,0
1000
40
22
080640115
8064S 1,6
1600
47
23
080640120
8064S 2,0
2000
47
27
080640130
8064S 3,2
3200
64
35
080640150
8064S 5,0
5000
77
43
080640175
8064S 7,5
7500
90
53
080640199
8064S 10,0
10000
96
58
