8057R - 8057

Self-locking lifting hooks, eye type, high-tensile alloy steel

TECHNICAL DATA
• safety factor: 4
• heat treatment: hardening and tempering
• traceability code
LABORATORY TESTS
• chemical analysis, metallographic analysis
• tensile test
• fatigue test (min. 20,000 cycles)
• proof load test (100% of batch)
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204
type 2.2
• Inspection certificate UNI EN10204
type 3.1
• CE Declaration of Conformity

EN 1677-3

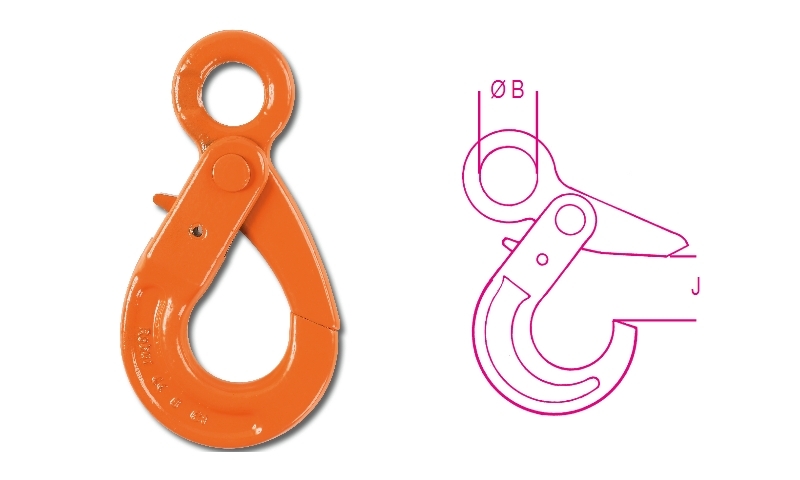

Images with dimensions

Product Name
Art.
WLL kg
 Ø mm
J min mm
ØB mm
080570053
8057
5300
13
54
40
080570112
8057R
1120
6
28
22
080570120
8057R
2000
7-8
34
25
080570132
8057R
3150
10
44
32
