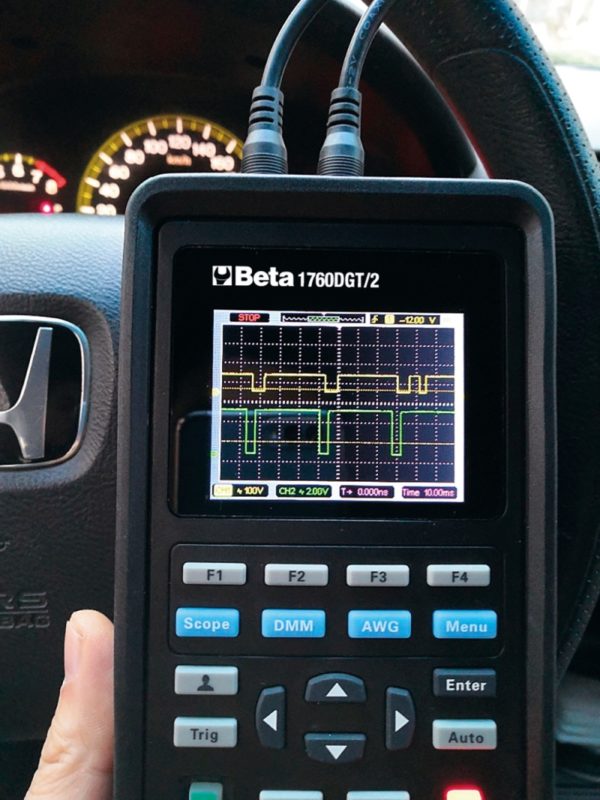

​Digital automotive multimeter, portable, with 2-channel oscilloscope and waveform generator

Includes a 2-channel oscilloscope.

Kit Contents:
• Multimeter tips
• 2 BNC crocodile clips for oscilloscope
• Tip probe for oscilloscope (1X and 10X)
• Battery charger
• Nylon sheath

Technical data:
• Display: 2.8″ colour TFT
• Resolution: 320 x 240 pixels
• Power supply: 100V-240V AC, 50Hz-60Hz; DC INPUT 5V DC-2A
• Battery: 2 x 2600 mAh
• Dimensions: 199 x 98 x 40 mm
• Weight: 624g

Multimeter Specifications:
• Test: Voltage, Current, Resistance, Capacity, Diodes and On-Off
• Max. voltage: 600V DC
• Max. current: 10A DC
• Max. resistance: 40MOHM
• Max. capacity: 100uF

Oscilloscope Specifications:
Horizontal
• Bandwidth: 40MHz
• Sampling frequency range: 250MSa/s (single channel) – 125MSa/s (double channel)
• SEC/DIV range: 5ns/div ÷ 500s/div 1,2,5 sequence

Vertical
• VOLTS/DIV range: 10mV/div÷10V/divat BNC input
• Selectable analogue, bandwidth limit, typical: 20MHz
• Low frequency response (-3db): ≤10Hz a BNC
• DC Gain Accuracy: ± 3% for Normal or Medium acquisition mode, 10V/div ÷ 10 mV/div

Trigger
• Type: Edge
• Mode: Auto, Normal, Single
• Slope: Rising, Falling, Rising, & Falling
• Source: CH1, CH2

Input
• Coupling: DC, AC or GND
• Supported probe attenuation factors: 1X, 10X, 100X, 1000X

Arbitrary waveform generator
• Waveform frequency: Sine (1Hz÷25MHz), Square (1Hz÷10MHz), Ramp (1Hz÷1MHz), EXP (1Hz÷5MHz)
• Width: 2.5Vpp (50Ω) – 5Vpp (high impedance)
• Output impedance: 50Ω

Multimeter specifications:
• Test: Voltage, Current, Resistance, Capacity, Diodes and On-Off
• Max. voltage: 600V DC
• Max. current: 10A DC
• Max. resistance: 40MOHM
• Max. capacity: 100uF
