1760/RMS

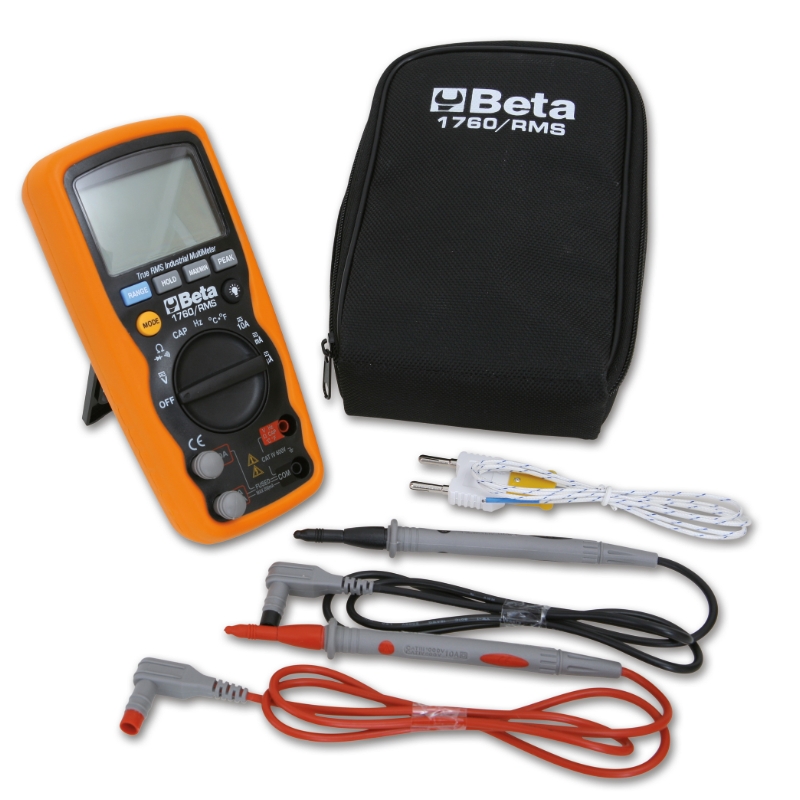

Industrial digital multimeter accurate and sturdy, in a 6-mm co-moulded shell, with antislip, shockproof outer rubber part

New Item
Shockproof: tested for falls up to 2 metres
Waterproof IP67
Features:
• Water protection IP67
• Protection up to 1000V
• Tested for accidental falls up to 2 m
• Protected inlets
• Autoranging
• Large direct reading display, backlit, blue
• K type temperature probe (included)
• Self-power down
• Rubber terminal base for enhanced operating comfort
• Double insulated terminals, 1000V, 1 m long
• Supplied in a soft case
• CAT IV 600V/ CAT III 1000V
• Actual effective value TRUE RMS

Technical Features:
Measuring range  Base accuracy
AC/DC voltage      110mV – 600V ±0.8% – ±2%     rdg
AC/DC current      110μA – 10A ±1.5% – ±2%     rdg
Resistance            110Ω –  40MΩ ±1.2% – ±2.5%  rdg
Capacity                11nF – 40mF ±5%    – ±10%   rdg (up to 11mF)
Frequency             1100Hz – 110 MHz ±1.2% – ±1.5%  rdg
Temperature          -32°C –  +1000°C ±3%    – ±5%     rdg
Diode test, 3V DC ±10%      rdg
Continuity test                     <30 Ω -

Images with dimensions

Product Name
Art.
017600020
1760/RMS
