412A

Twist drills with cylindrical shanks, short series, HSS, entirely ground, burnished, small tang (ø 13 mm)

R ≤ 800 N/mm²
HV ̴ 750÷820
R ≤ 800 N/mm²
HV ~ 750÷820

DIN 338 ISO 235

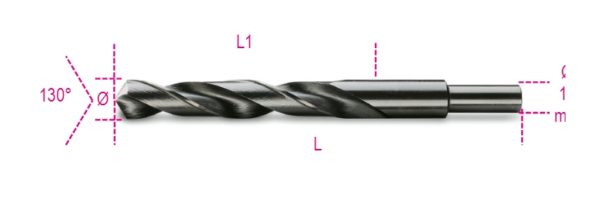

Images with dimensions

Product Name
Art.
Ø mm
L mm
L1 mm
004120202
412A 13,50
13,50
160
108
004120204
412A 14,00
14,00
160
108
004120206
412A 14,50
14,50
169
114
004120208
412A 15,00
15,00
169
114
004120210
412A 15,50
15,50
178
120
004120212
412A 16,00
16,00
178
120
004120213
412A 16,50
16,50
184
125
004120214
412A 17,00
17,00
184
125
004120215
412A 17,50
17,50
191
130
004120216
412A 18,00
18,00
191
130
004120217
412A 18,50
18,50
198
135
004120218
412A 19,00
19,00
198
135
004120219
412A 19,50
19,50
205
140
004120220
412A 20,00
20,00
205
140
