430ASC
Hand taps, UNC thread made from chrome-steel
ANSI B1.1

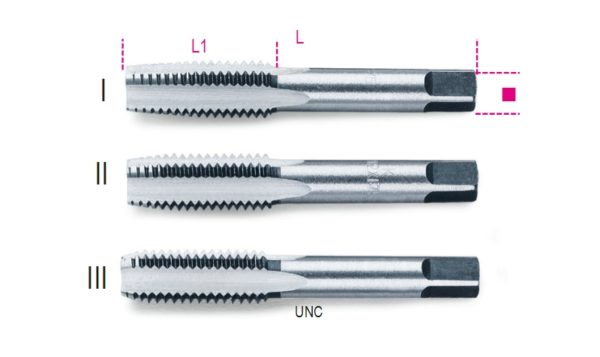

Images with dimensions
Product Name
Art.
UNC
mm
L
mm
L1
mm
004300051
430ASC 1/4
1/4x20
4,9
70
30
004300052
430ASC 5/16
5/16x18
4,9
70
30
004300053
430ASC 3/8
3/8x16
5,5
75
35
004300054
430ASC 7/16
7/16x14
6,2
80
40
004300055
430ASC 1/2
1/2x13
7,0
85
45
004300056
430ASC 9/16
9/16x12
9,0
90
45
004300057
430ASC 5/8
5/8x11
9,0
100
47
004300058
430ASC 3/4
3/4x10
11,0
110
50
004300059
430ASC 7/8
7/8x9
14,5
120
60
004300060
430ASC 1"
1"x8
16,0
130
60
